After getting tired of just putting parts on a rack shelf, I decided to mount everything into an enclosure to make it look alittle neater.

Picked up a 1u rack mount enclosure, and installed a Masters communications RA-42 board, a lybre computer, added 2 fans, and remoted the LED's to the front panel.

Also added an external wifi antenna, so I can use it with my hotspot, or also have the option for a rear ethernet jack.

Still have some cable management to do, and some labeling, but it's pretty much complete.

Well expect for the software. LOL



This whole project is going into a portable rack case, with a power supply, and paired up with a kenwood TKR-830 low power repeater. Roughly 5 watts.



More to come...



Dirk

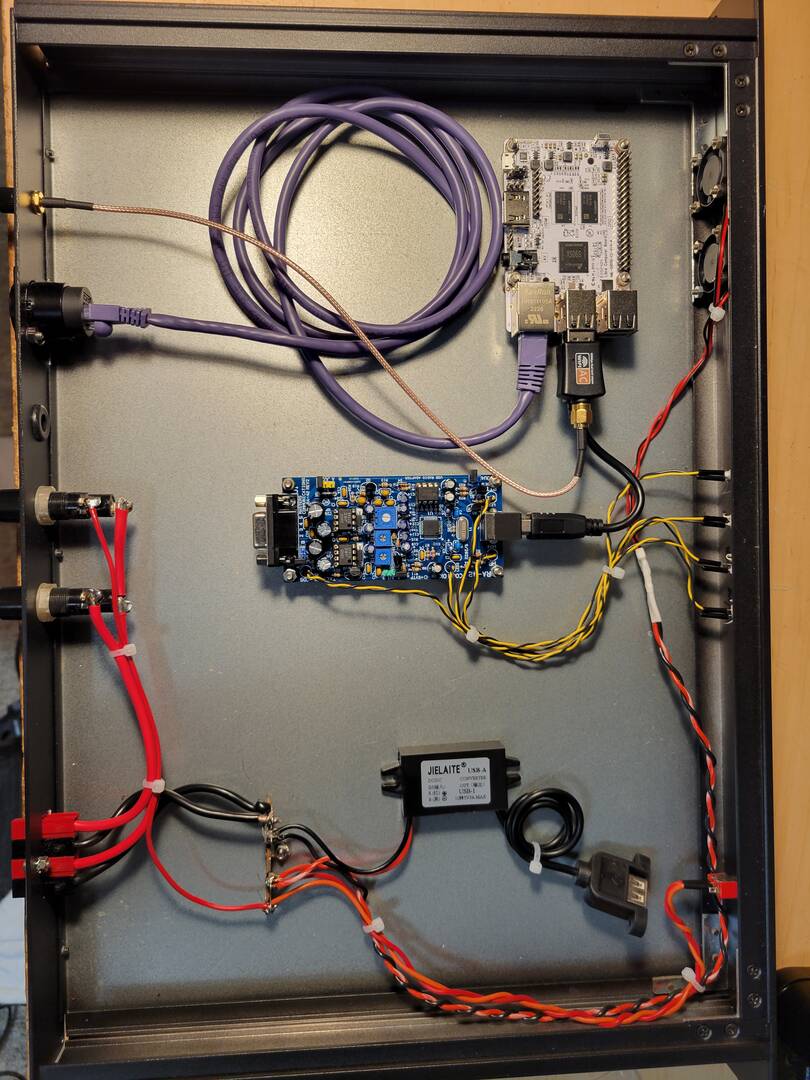

20221107 213855

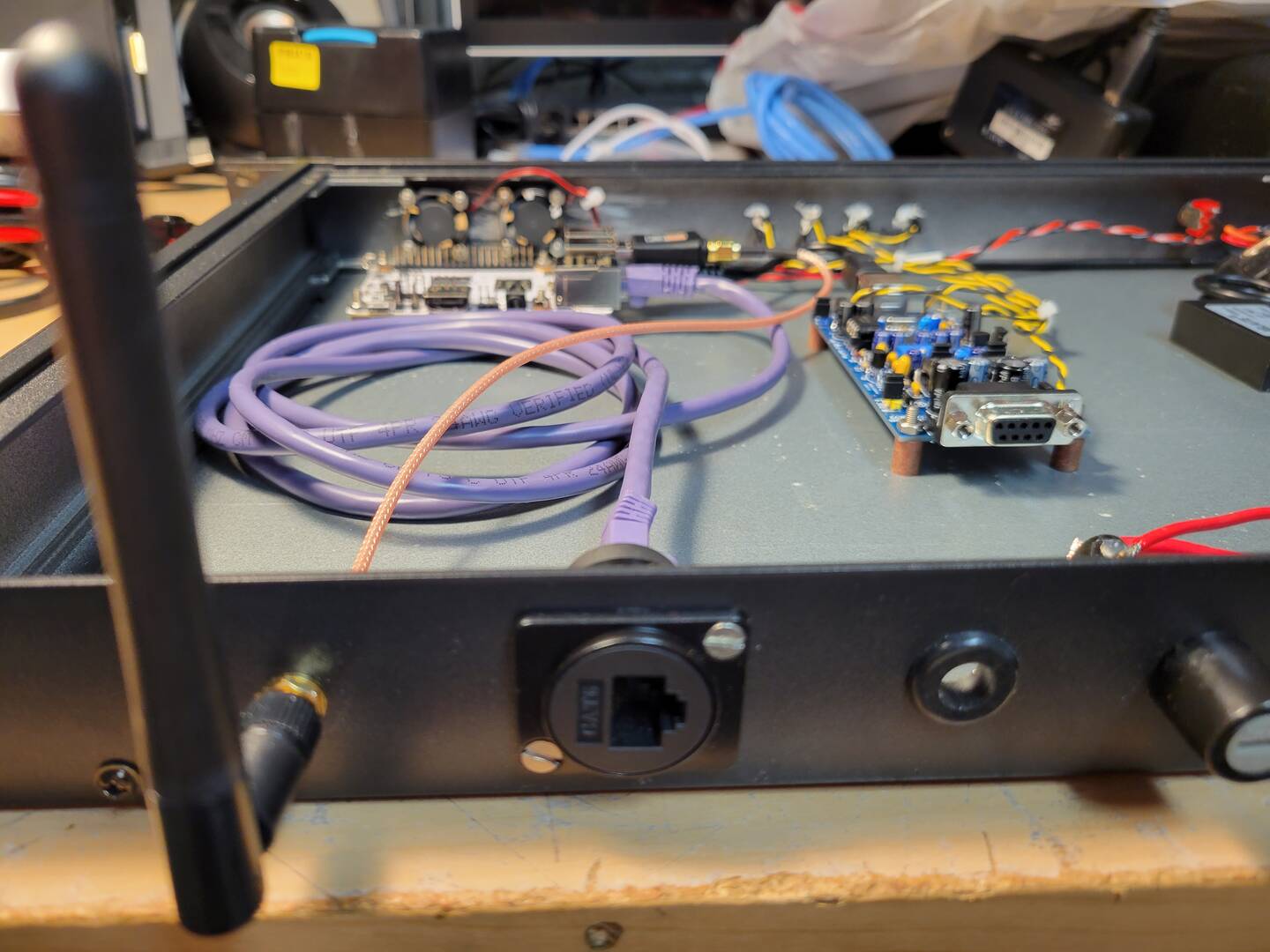

20221107 213940

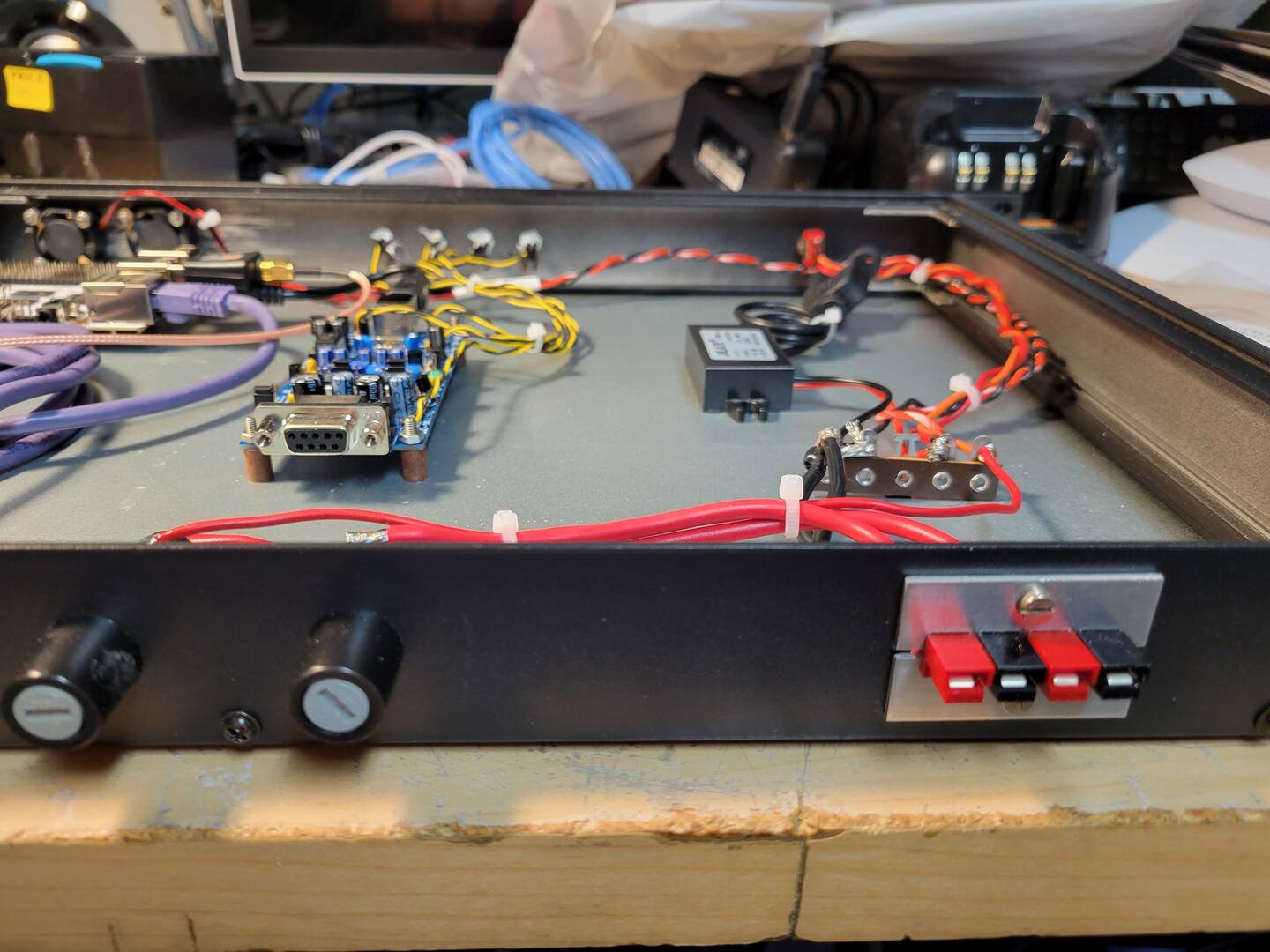

20221107 213944

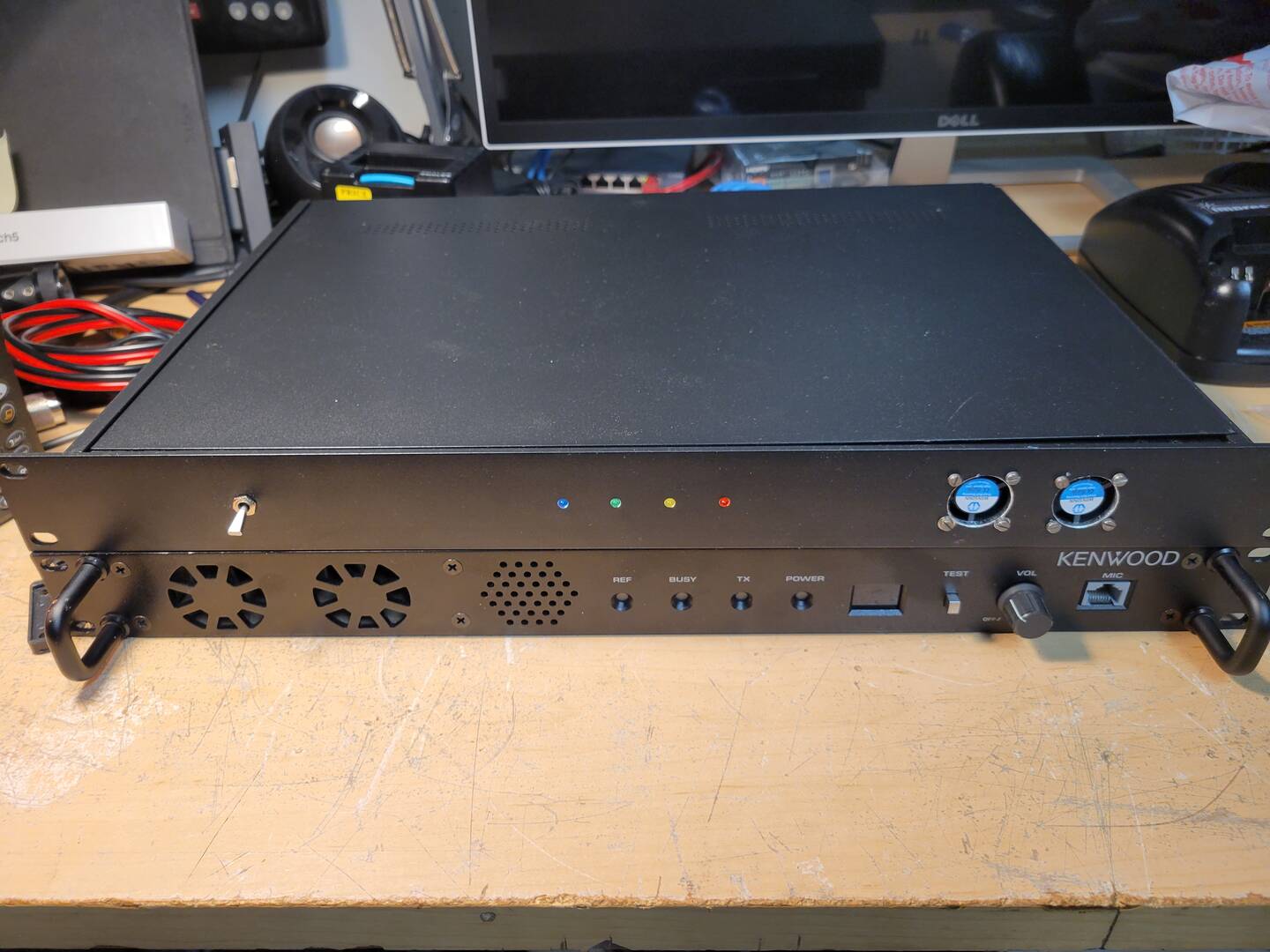

20221107 215537

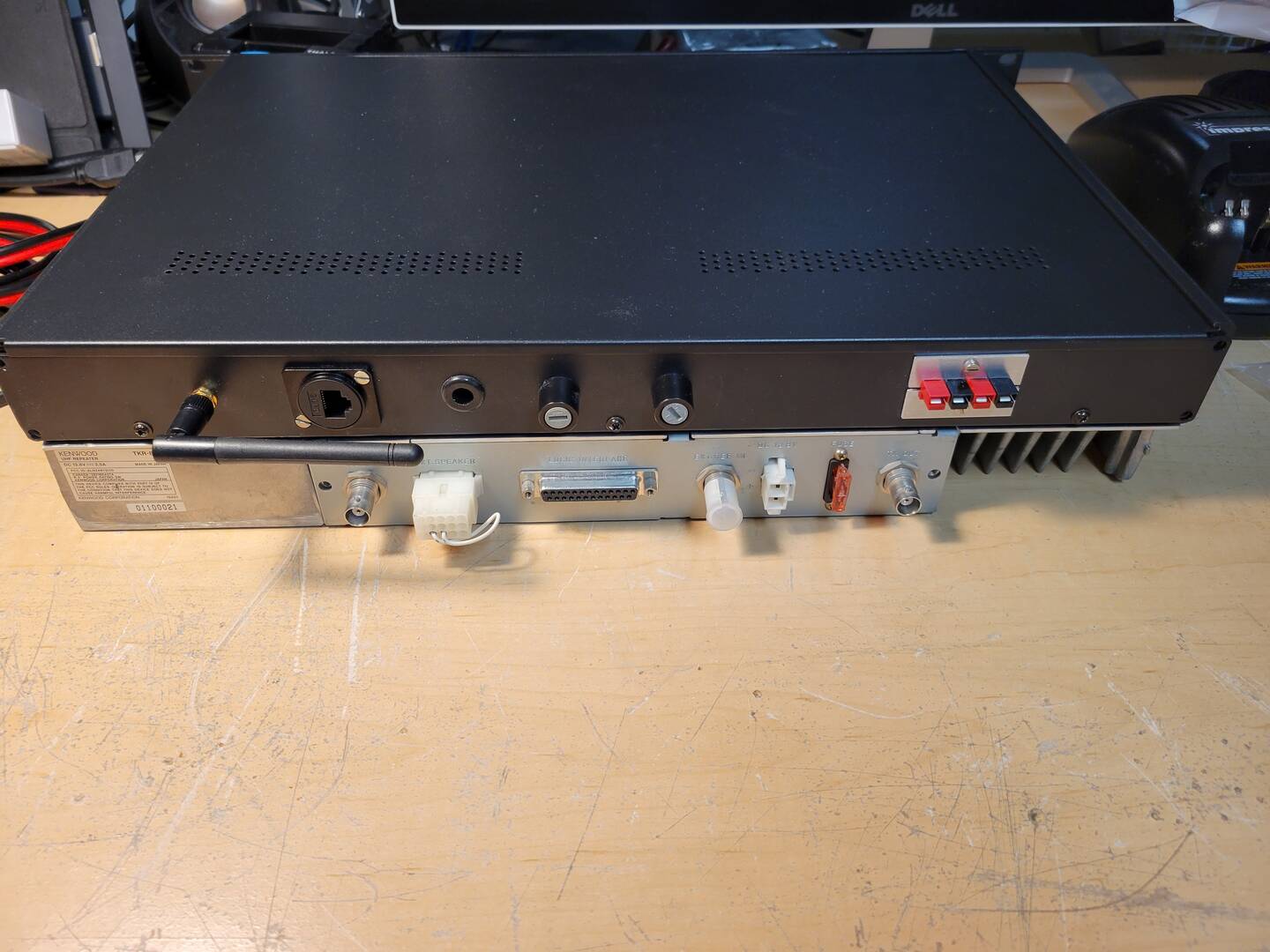

20221107 215604


Dan Grady and Brian reacted
Quote
Randy
(@randy)
Member
Joined: 4 years ago
Posts: 43


Pretty fancy Dirk.  I like it.

Randy



ReplyQuote
Dan Grady
(@n2srk)
Estimable Member Admin
Joined: 4 years ago
Posts: 74


Great job, Dirk!  Clean look and certainly declutters the shack.  Way to go!
